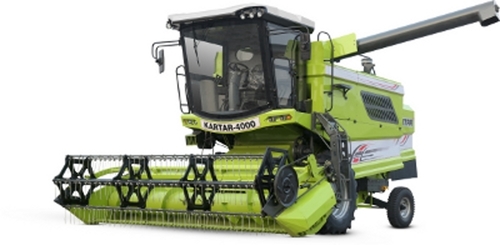

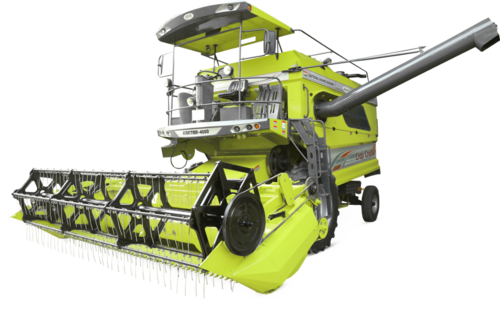

Specifications For Kartar 4000 (51")

          Engine

TYPE

Ashok Leyland
H6ET1C3RD22/1
101 H.P @2200
RPM

No. of Cylinders:

6(SIX)

Cooling System

Water Cooled

            CUTTER BAR

Width:

4199 mm

Height Adjustment:

Hydraulically

Cutting Height Min:

100 mm

Cutting Height Max:

700 mm

               REEL

TYPE:

Pick Up

Speed Adjustment:

Mechanically

Height Adjustment:

Hydraulically

             Thresher Drum

Dia of Drum:

600 mm

Length of Drum:

1270 mm

Speed of Drum:

535 to 1210 rpm

Adjustment:

Mechanically

No. of Rasp Bars:

8(Eight)

No. of Spikes:

128

            Concave

Clearance Between:

16 to 39 mm

Concave & Thresher:

3 to 16 mm

No. of Spikes:

Mechanically
36

            Straw Walkers

No. of Straw Walkers :

5(FIVE)

Total Area :

46565 sq. cm.

          Cleaning

Area :

16422 sq. cm.

Adjustment:

Mechanically

                Ground Speed

1st Gear Km/h :

1.5 to 3.5

2nd Gear Km/h :

3.5 to 9.0

3rd Gear Km/h :

8.5 to 21.9

Reverse Gear Km/h :

3.5 to 9.0

              Fan

No. of Blades :

5(FIVE)

Diameter of Fan :

600 mm

Width of Fan:

1260 mm

Adjustment :

Mechanically

             Steering

Steering System :

Hydraulic

             Capacity

Fuel tank:

380 Lts.

Grain Tank :

2.64 meter Cube

Hyd. Oil Tank :

25 Lts.

            Tyre Size

Front:

18.4/15/30

Rear/Trolley :

9.00 X 16

              Dimensions

Length :

8535 mm

Height :

4572 mm

Min Ground Clearance:

460 mm

Weight :

9150 Kgs. (Approx.)

              Working Capacity

Wheat :

4.5

Acres/hour approx.

Paddy:

4

Acres/hour
approx
